Smoothline® Gutter
StratcoSKU: Smoothline-Gutter

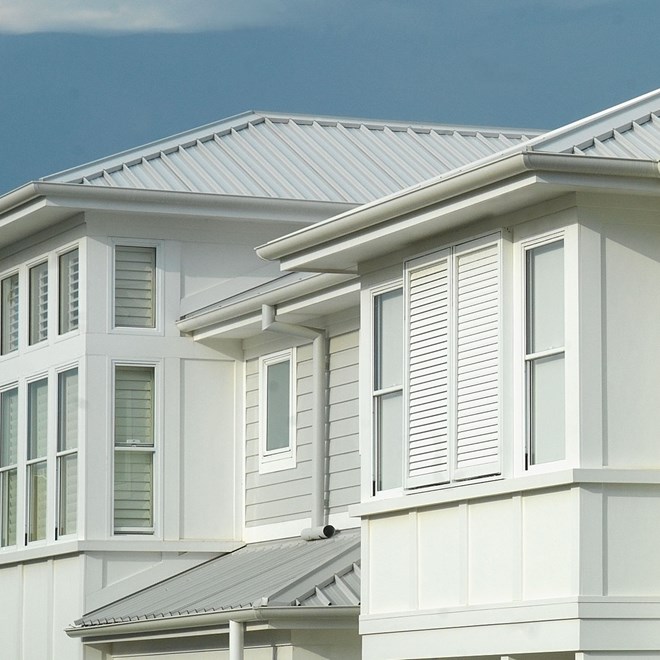

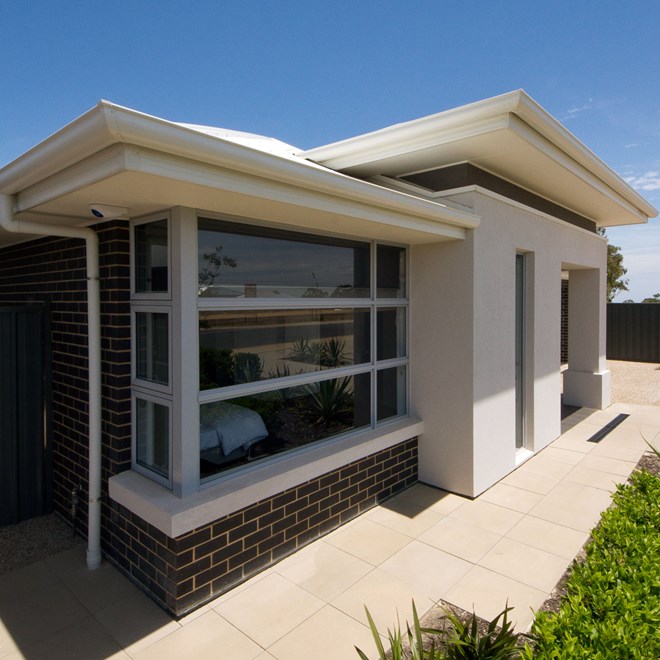

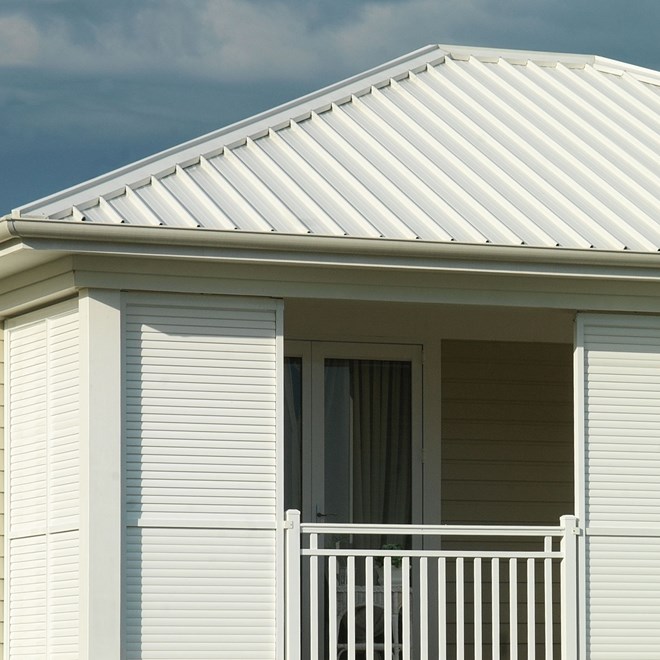

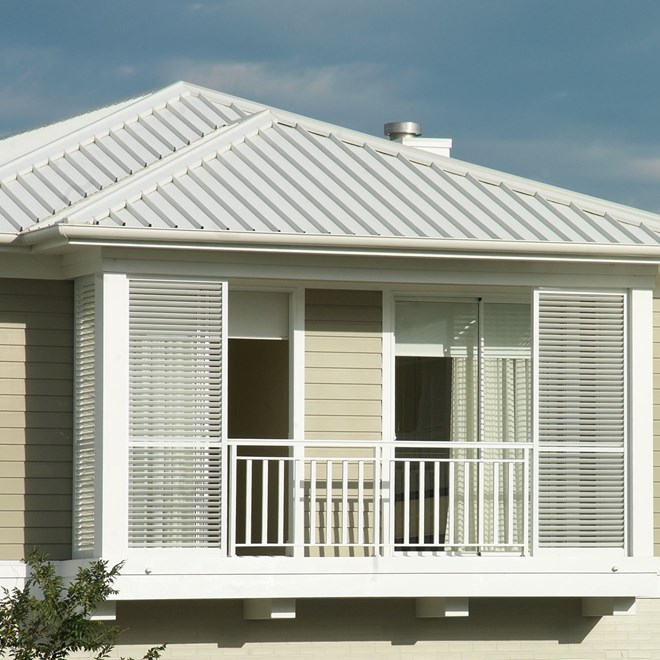

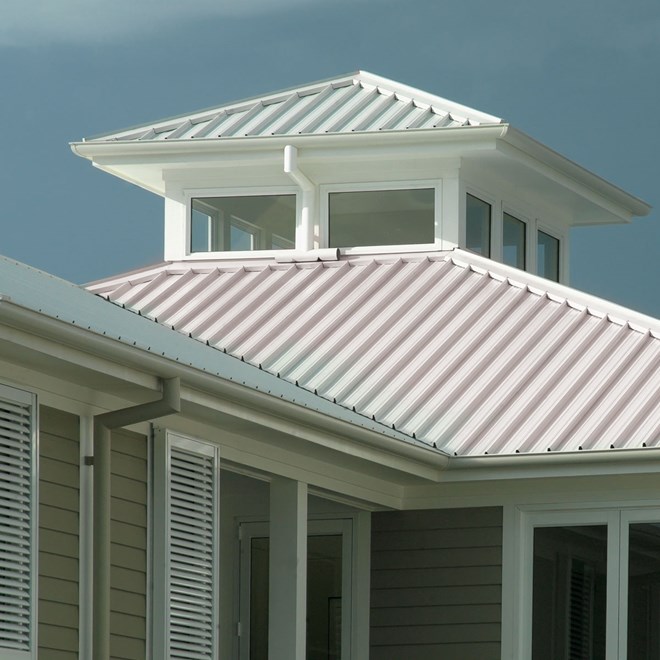

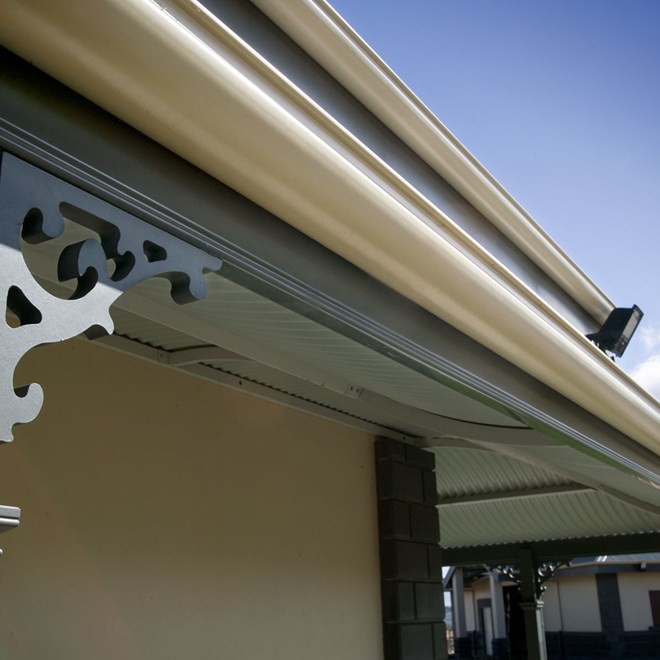

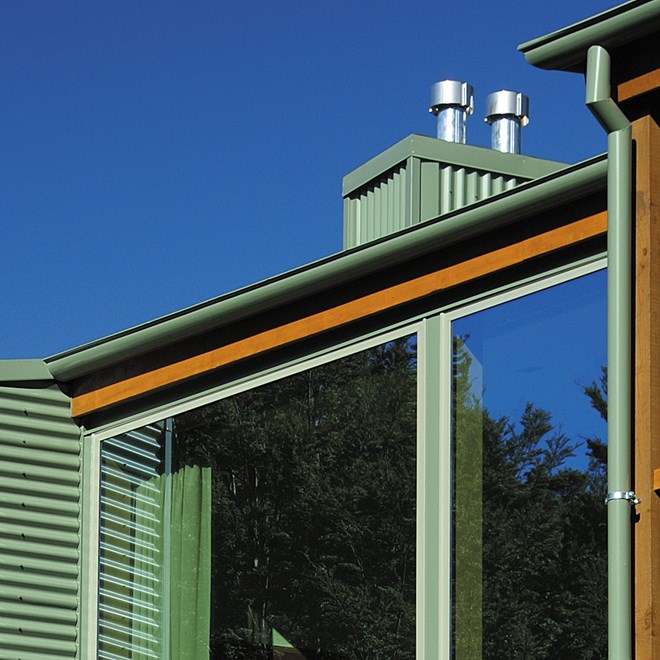

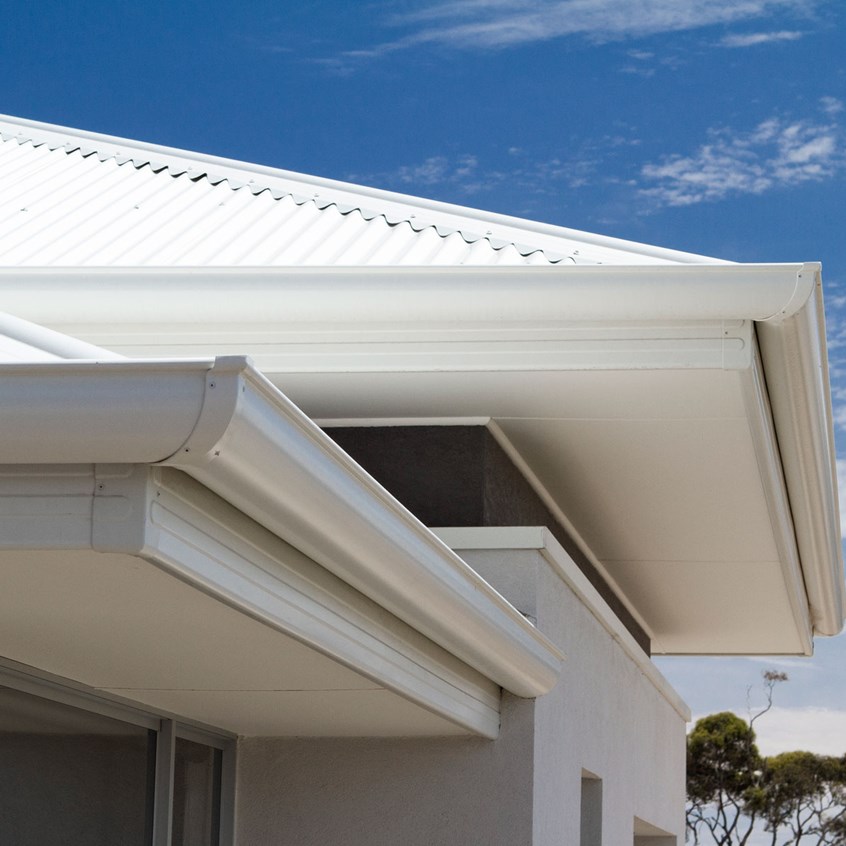

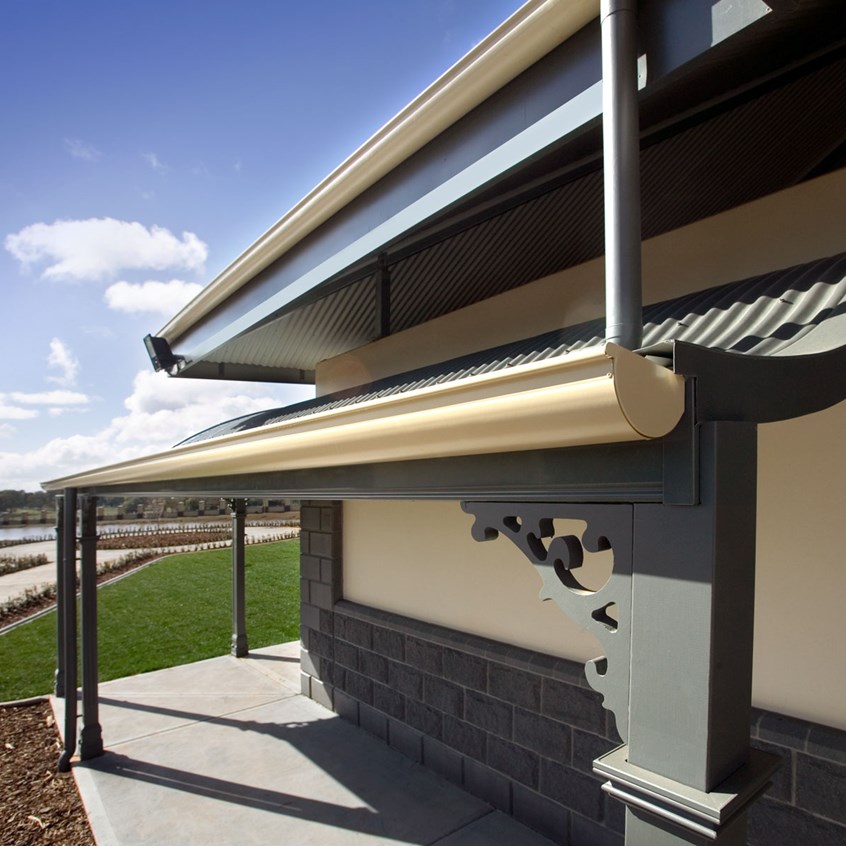

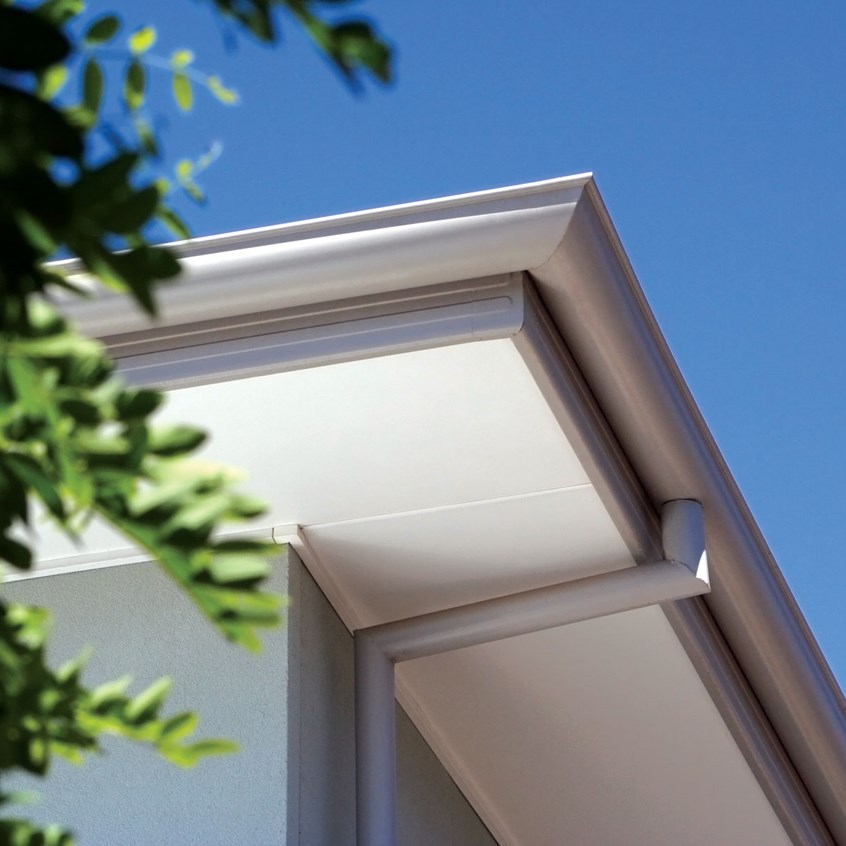

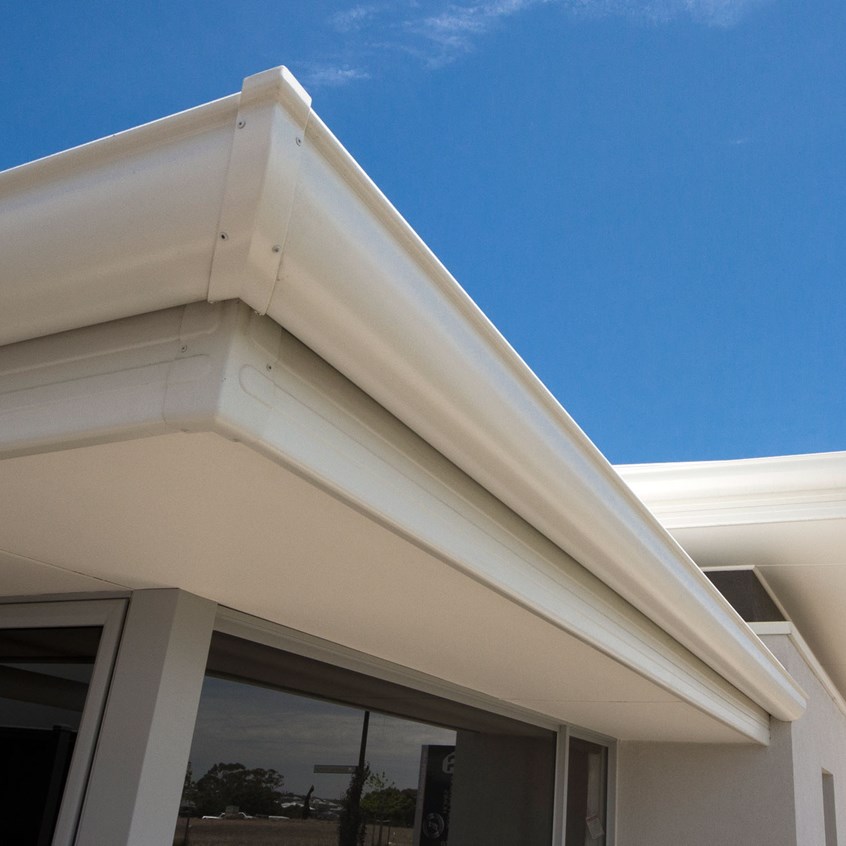

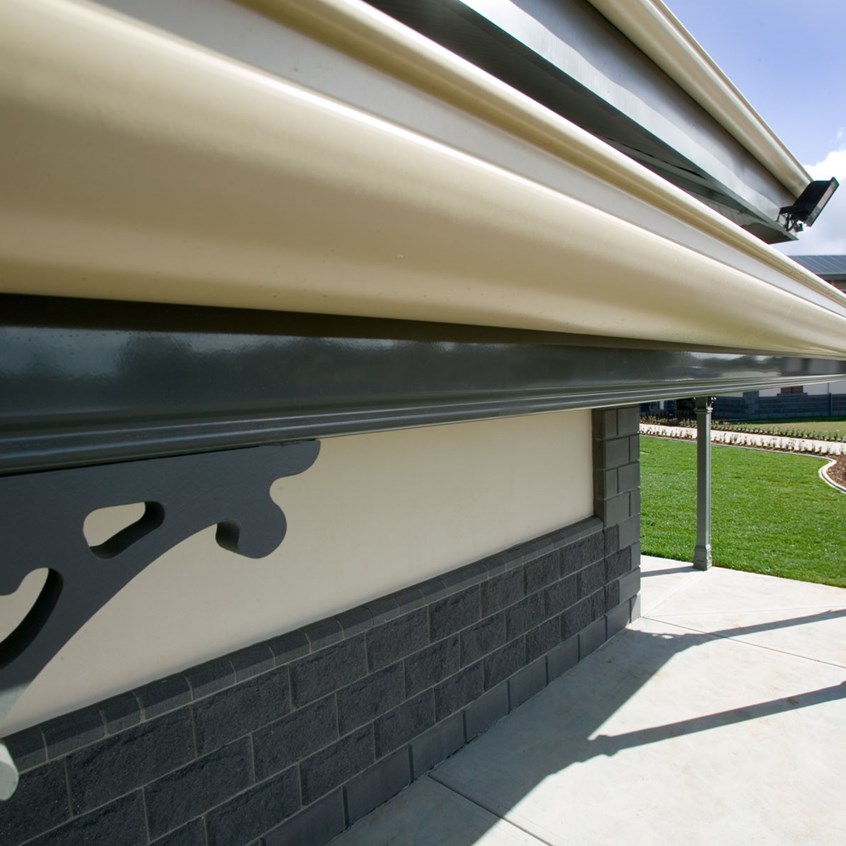

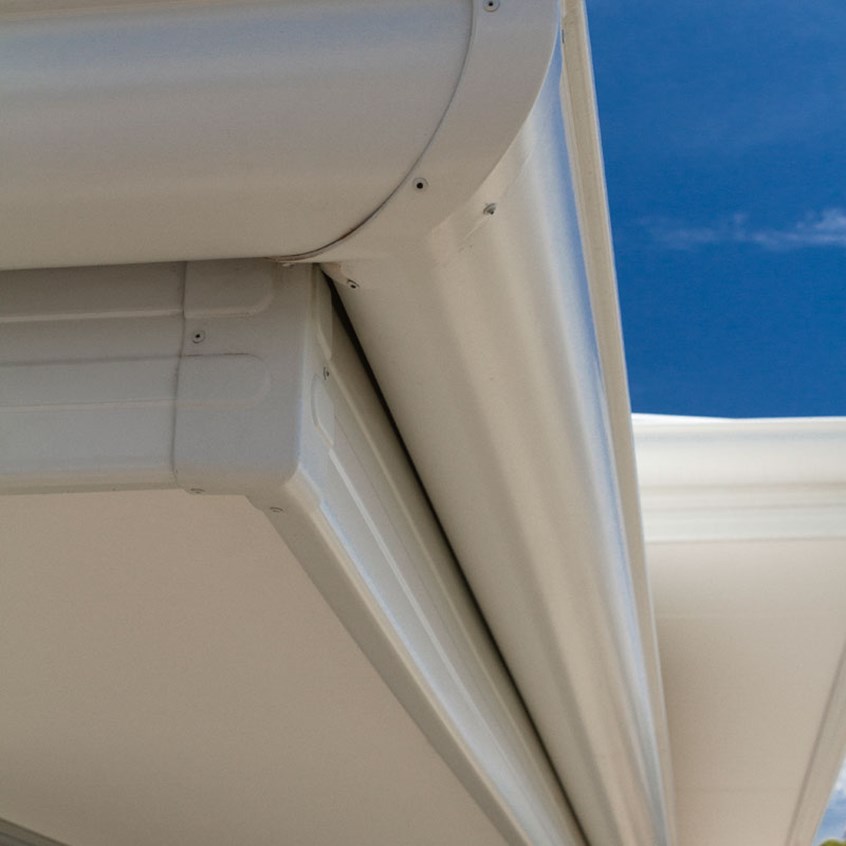

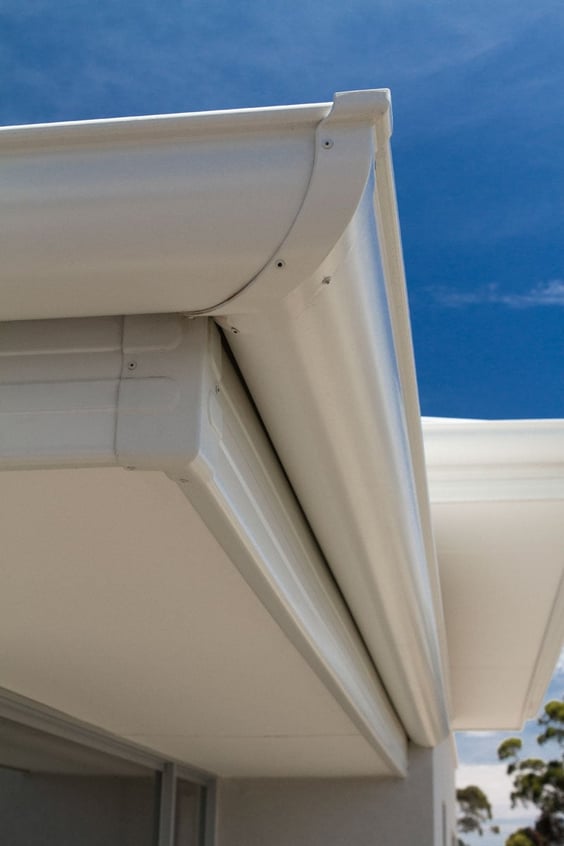

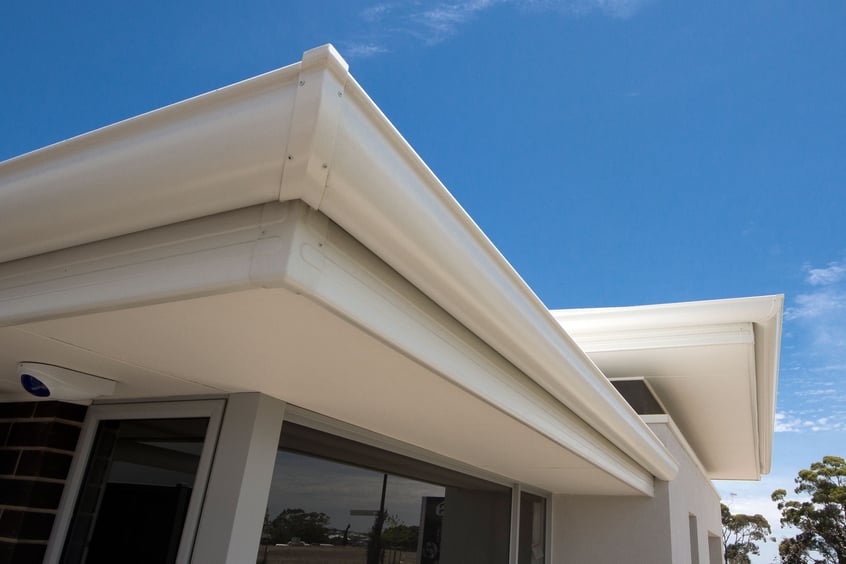

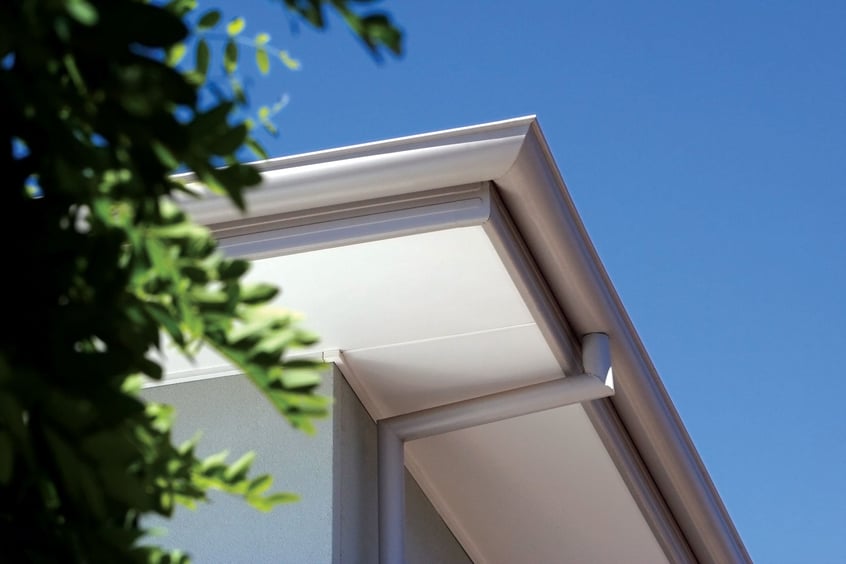

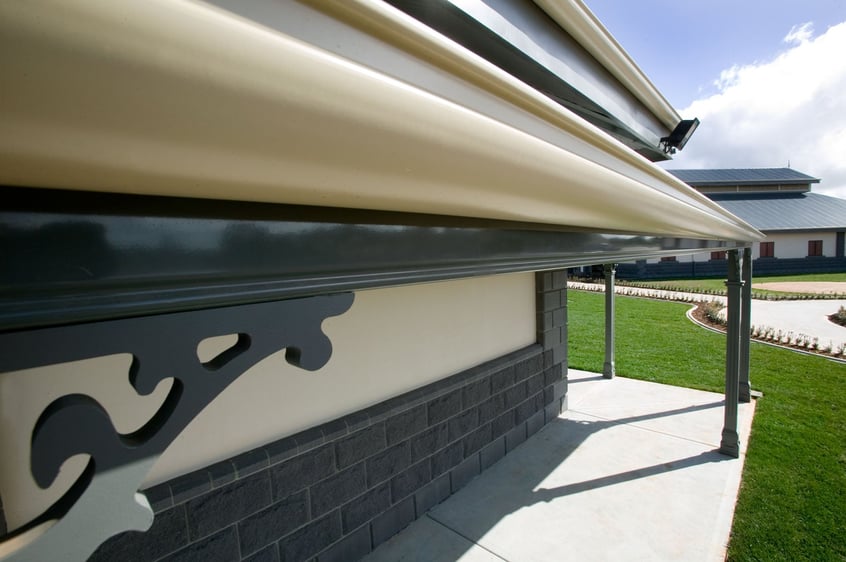

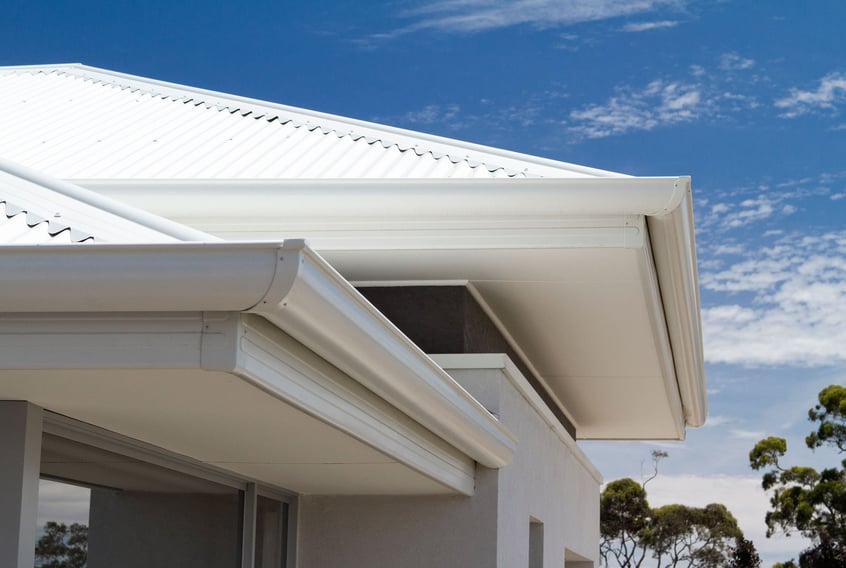

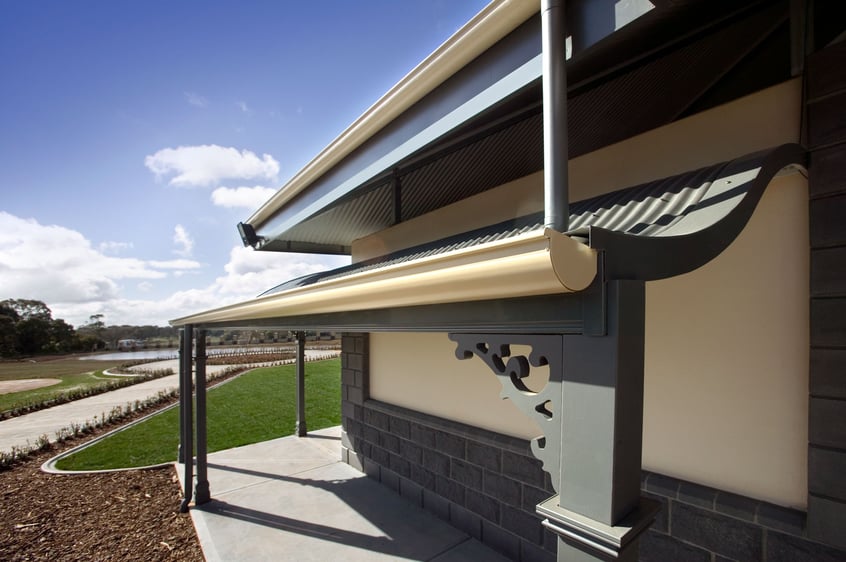

Featuring a smooth, attractive profile with a curved front and a flat back, Smoothline Gutter is suited to both modern and traditional homes. Smoothline Gutter has internal brackets for a clean appearance, it is easy to install and maintain. Manufactured in Christchurch.Image gallery
Smooth, Flowing Curves
Adaptable, elegant and practical guttering
Smoothline Gutter features a smooth, curved front with a flat back for stability. The curved profile of Smoothline Gutter is not only attractive, it also reduces the risk of debris build up due to its self cleaning nature.
Available in un-painted zinc/al or in a large range or pre-painted colours, Smoothline Gutter will complement both modern and traditional homes. Complete your project with an extensive range of Smoothline Gutter accessories including stop ends and brackets.
Available Colours:
Brochures & Installation Guides
Specifications
| Specifications | ||||
| Tensile (MPa) | BMT (mm) | Type | Capacity (mm²) | Total Cross Section Area (mm²) |
|---|---|---|---|---|
| G550 | 0.45 | Standard | 8748 | 10124 |
Note: Calculation of the effective cross sectional area ‘Capacity’ is based on the requirements of section 3.8 AS/NZS 2179.1:1994.
| Rainfall Intensity (ARI) mm/hr | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 |
| Catchment Area Per Downpipe (m2) | 204 | 170 | 145 | 127 | 113 | 102 | 92 | 85 | 78 | 73 | 68 | 64 | 60 | 57 | 54 | 51 |
Dimensions
| Dimensions (mm) | |
| A | 51 |
|---|---|
| B | 138 |
| C | 104 |
Gutter Accessories
Stop End
Individual stop ends can be supplied in left and right hand ready for on site installation.
Internal Str-8-line Strap
Brackets for gutters should be located close to all stop-ends, at both ends of sumps and rain-heads at a maximum of 750mm spacing for gutters less than 180mm wide, and at 600mm for gutters 180 – 300mm wide.
In snow load areas, spouting may be fitted with snow straps and brackets at a maximum of 600mm centres to withstand the additional potential weight of any snow build-up.
