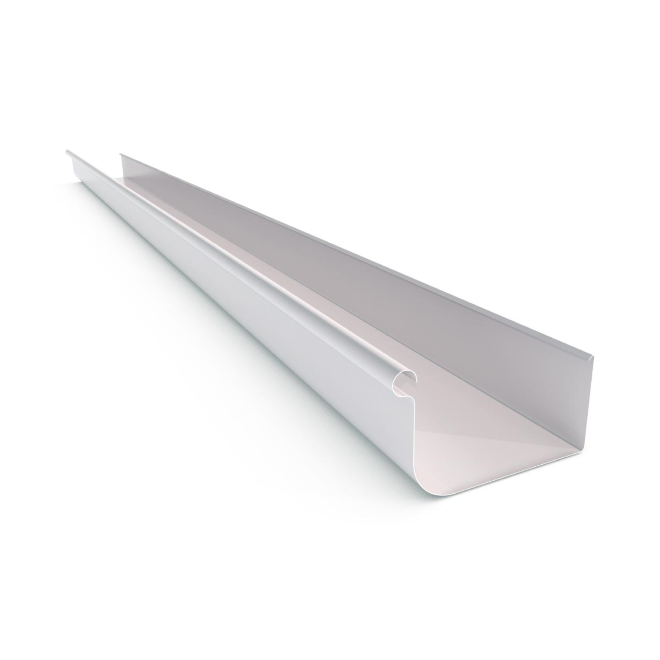

Quad Gutter
StratcoSKU: Quad-Gutter

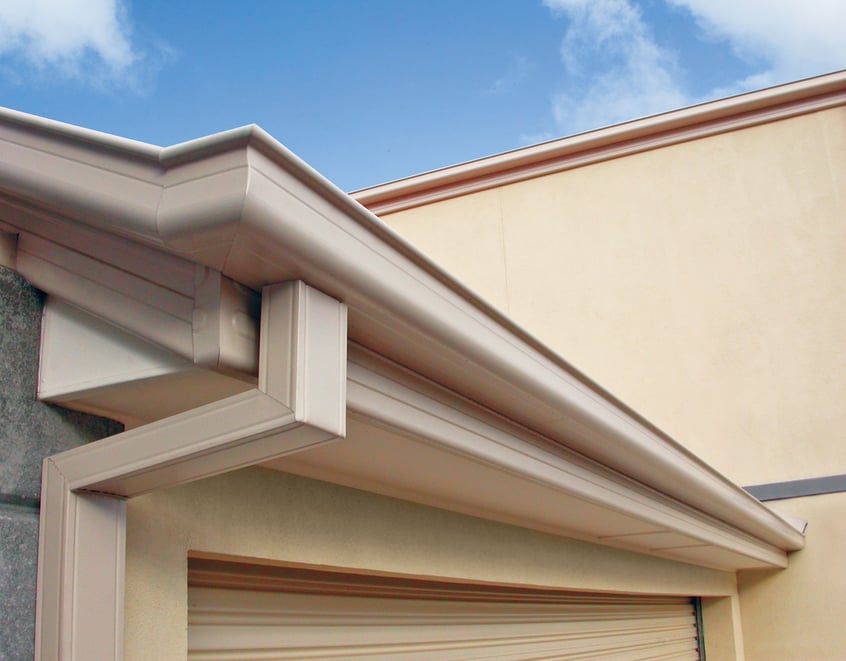

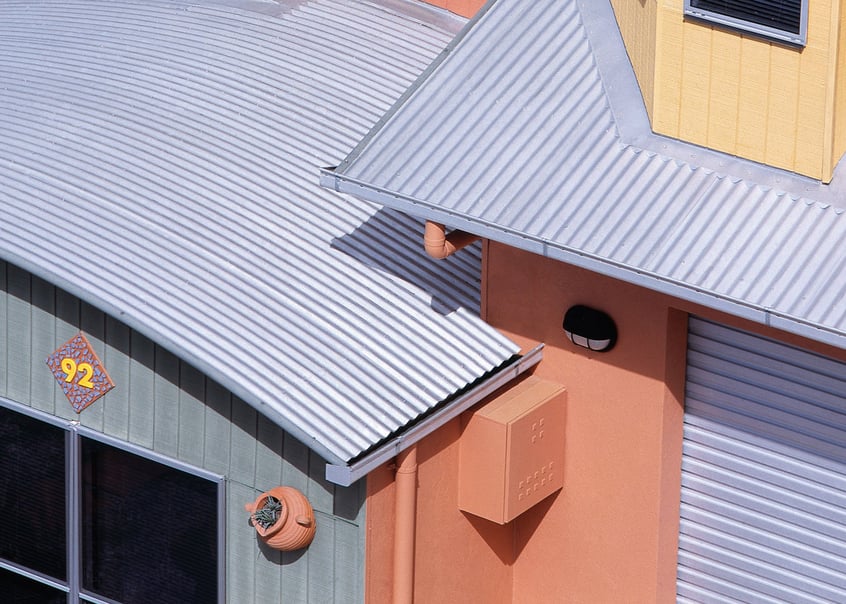

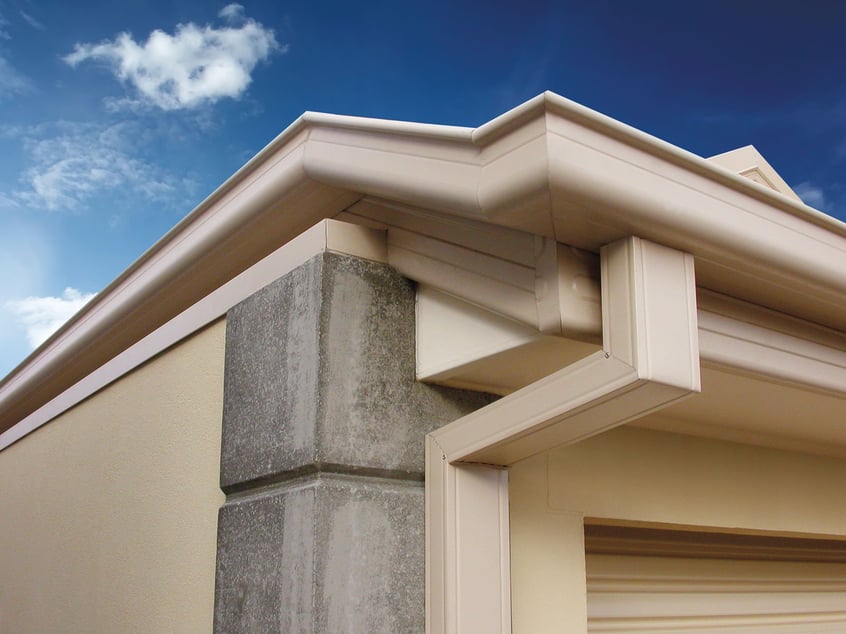

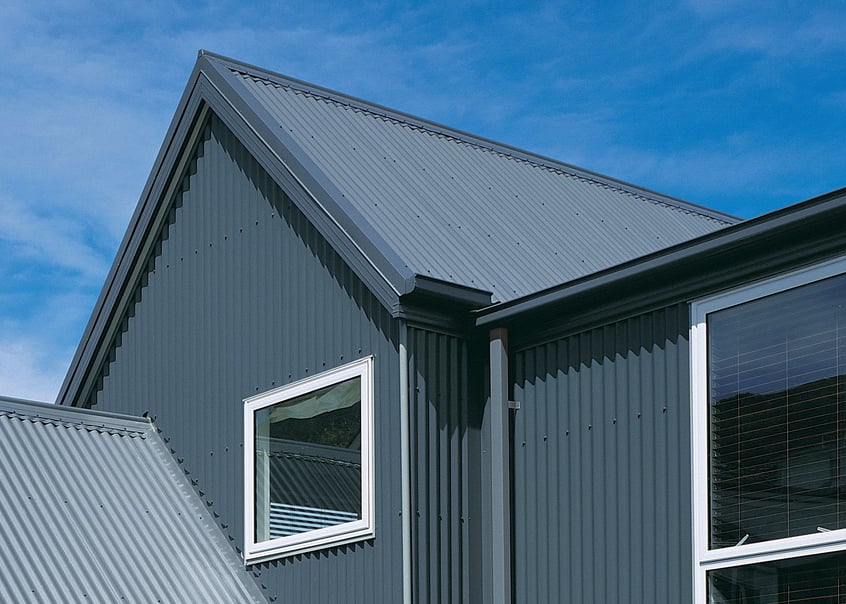

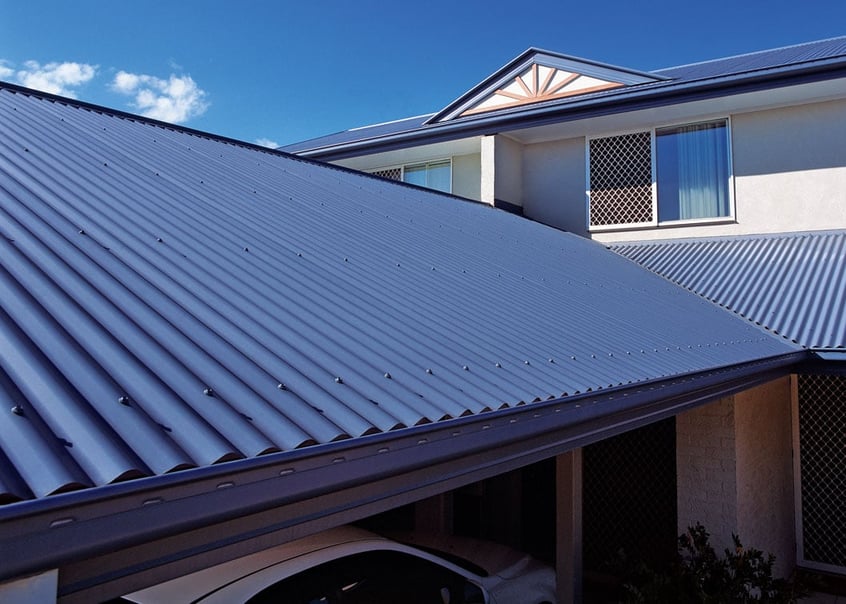

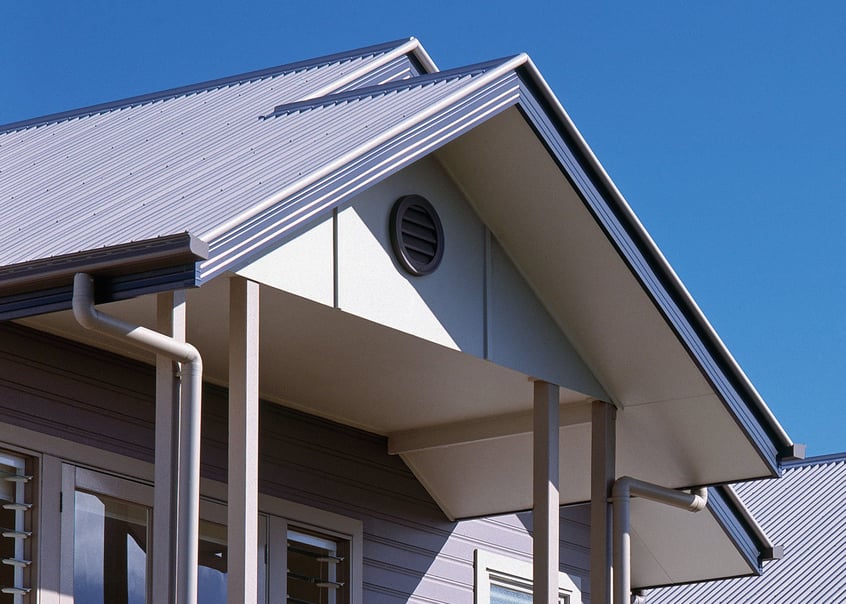

Quad Gutter is so adaptable because of its classic form. It can blend perfectly with both traditional and modern homes. Quad Gutter is available in a wide choice of colours to suit everyone's needs. Manufactured in Christchurch.Image gallery

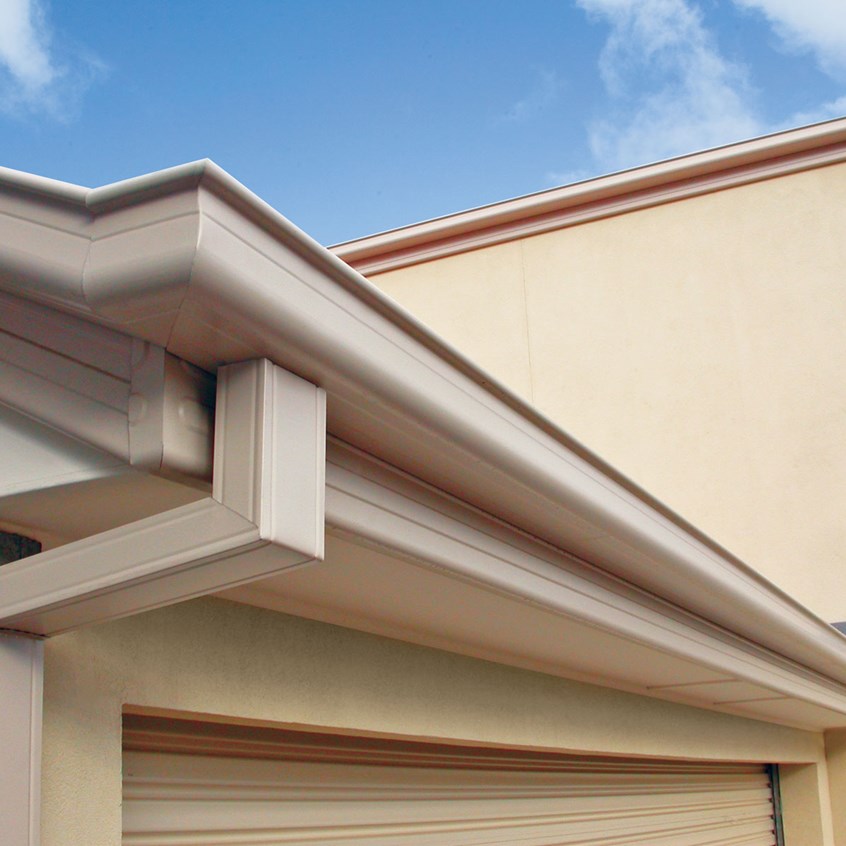

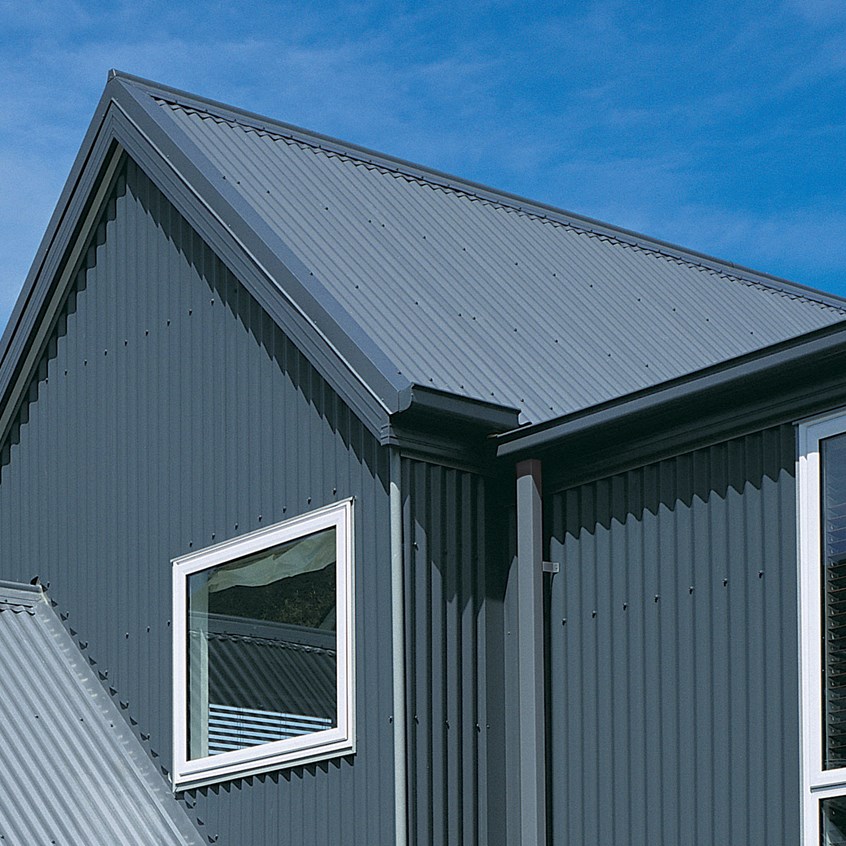

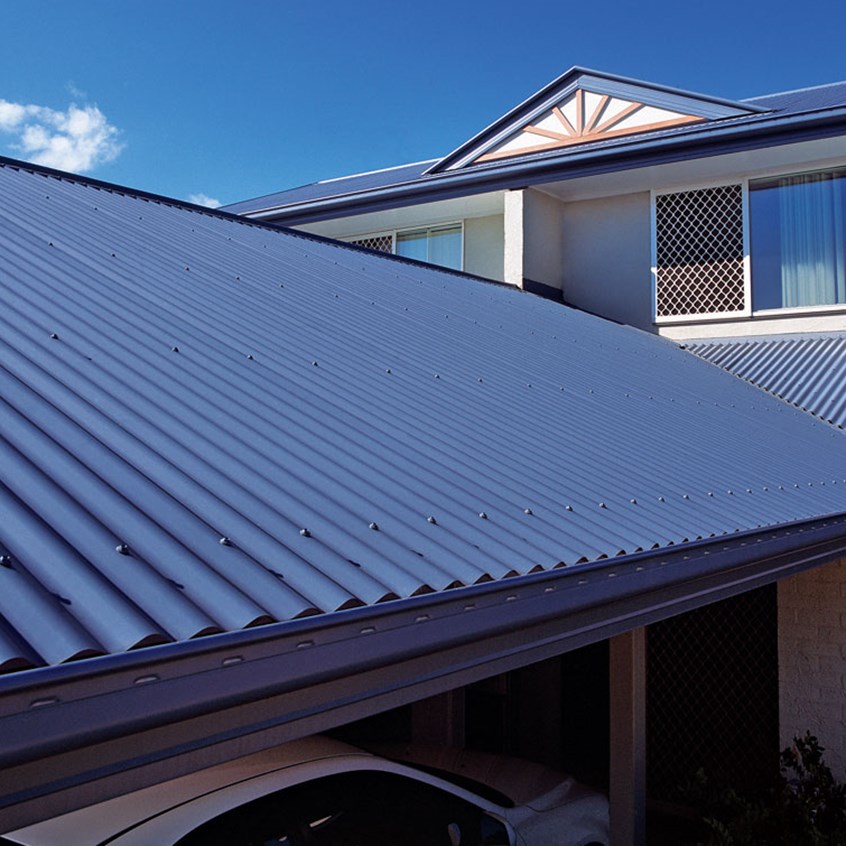

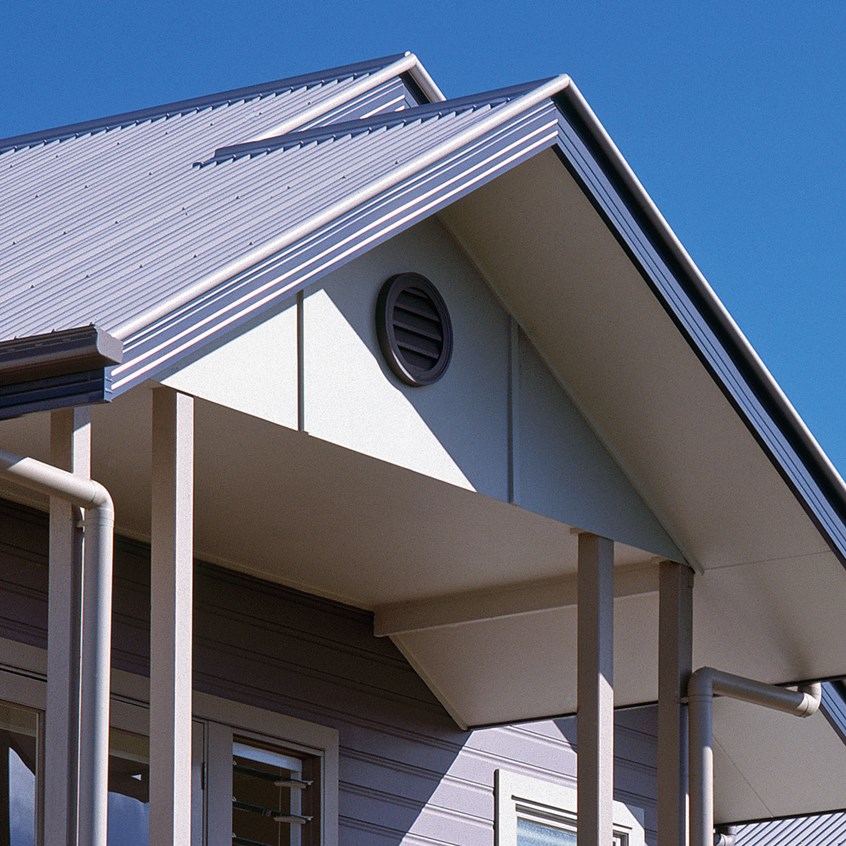

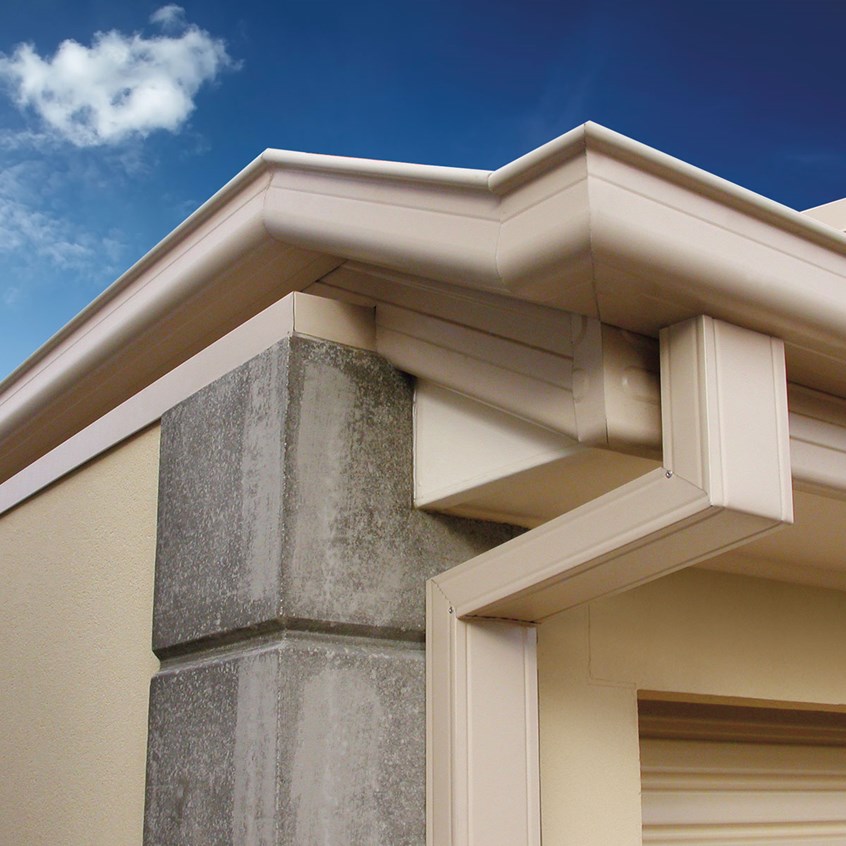

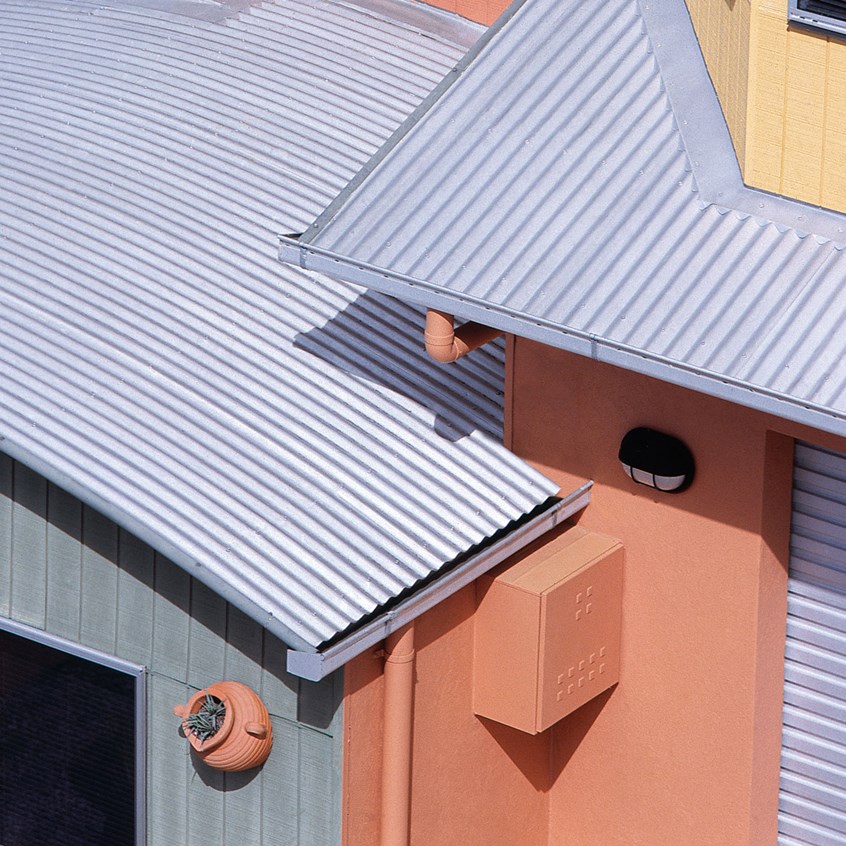

Guttering With Classic Style
Gutter styling designed to adapt to any architecture
Featuring a classic form that blends with any architecture from modern to traditional, Quad Gutter is one of the most adaptable gutter profiles. Quad Gutter can be ordered with slots in the front to allow excess water to overflow.
Choose from a large range of pre-painted steel colours or un-painted zinc/al. Complete your project with an extensive range of Quad Gutter accessories including brackets, mitres and stop ends.
Available Colours:
Brochures & Installation Guides
Specifications
| Specifications | ||||
| Tensile (MPa) | BMT (mm) | Type | Capacity (mm²) | Total Cross Section Area (mm²) |
|---|---|---|---|---|
| G250/300 | 0.55 | Standard | 5621 | 6760 |
Note: Calculation of the effective cross sectional area ‘Capacity’ is based on the requirements of section 3.8 AS/NZS 2179.1:1994.
| Rainfall Intensity (ARI) mm/hr | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 |
| Catchment Area Per Downpipe (m2) | 101 | 84 | 72 | 63 | 56 | 51 | 46 | 42 | 39 | 36 | 34 | 32 | 30 | 28 | 27 | 25 |
Dimensions
| Dimensions | |
| A | 61 |
|---|---|
| B | 115 |
| C | 90 |
Gutter Accessories
Stop End
Individual stop ends can be supplied in left and right hand ready for on site installation.
Internal Str-8-line Strap
Brackets for gutters should be located close to all stop-ends, at both ends of sumps and rain-heads at a maximum of 750mm spacing for gutters less than 180mm wide, and at 600mm for gutters 180 – 300mm wide.
In snow load areas, spouting may be fitted with snow straps and brackets at a maximum of 600mm centres to withstand the additional potential weight of any snow build-up.
