Half Round Gutter
StratcoSKU: Half-Round-Gutter

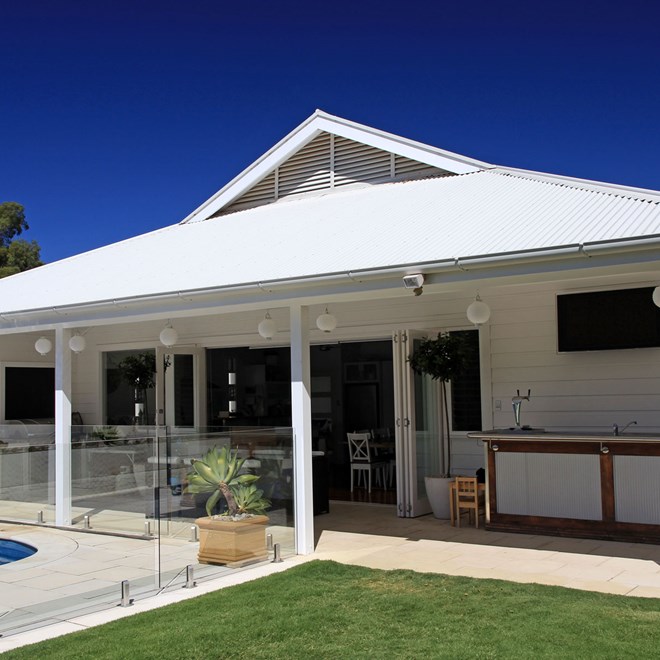

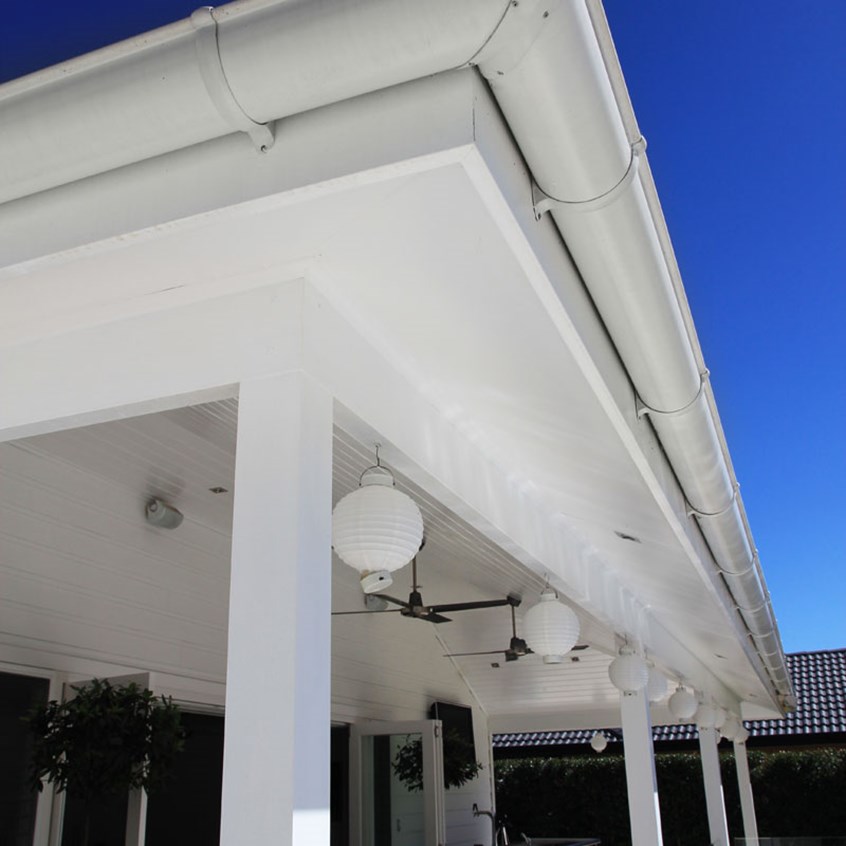

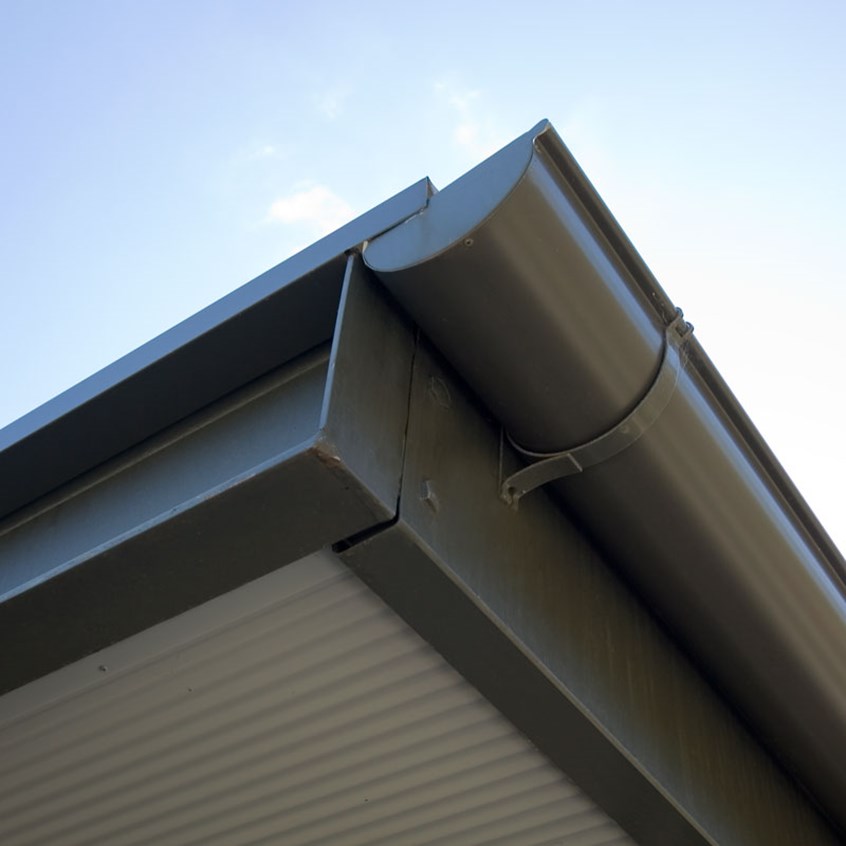

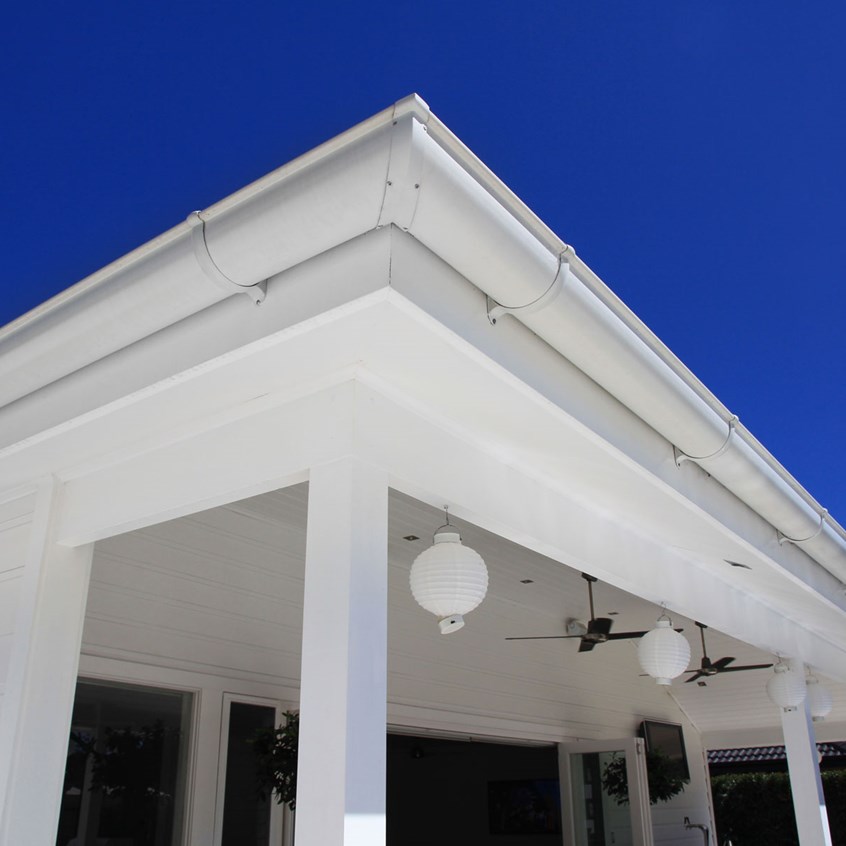

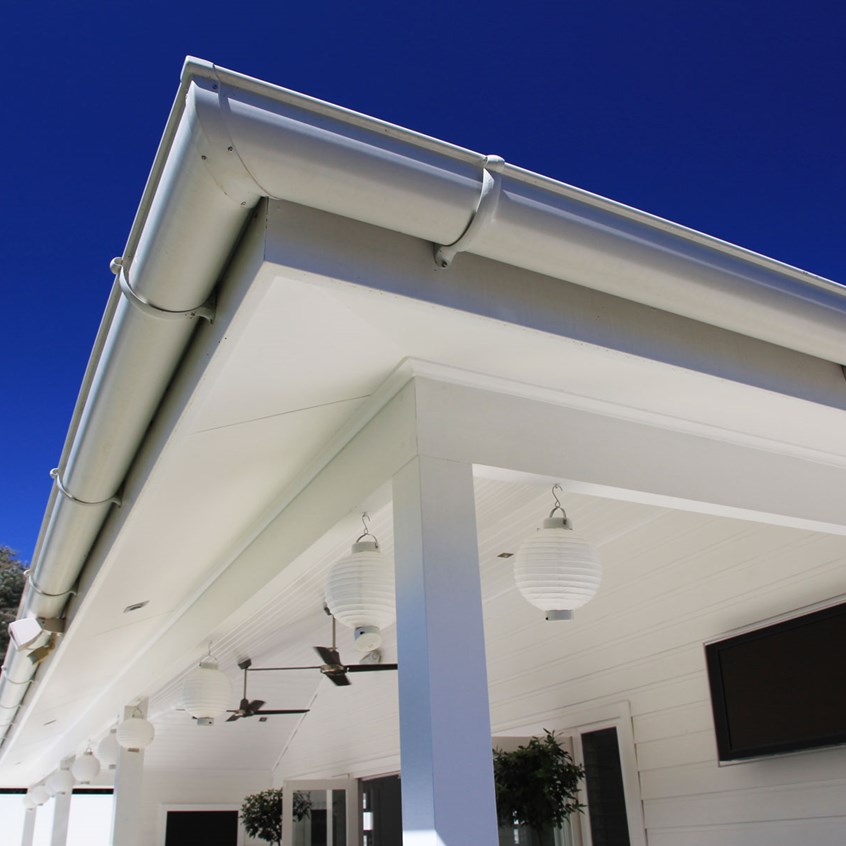

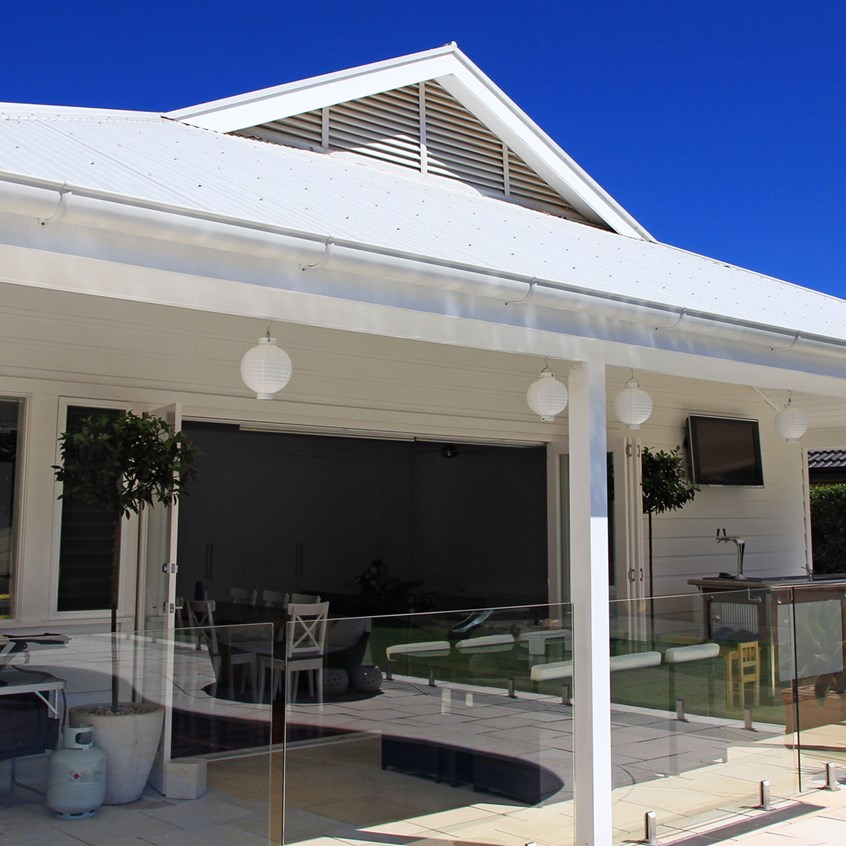

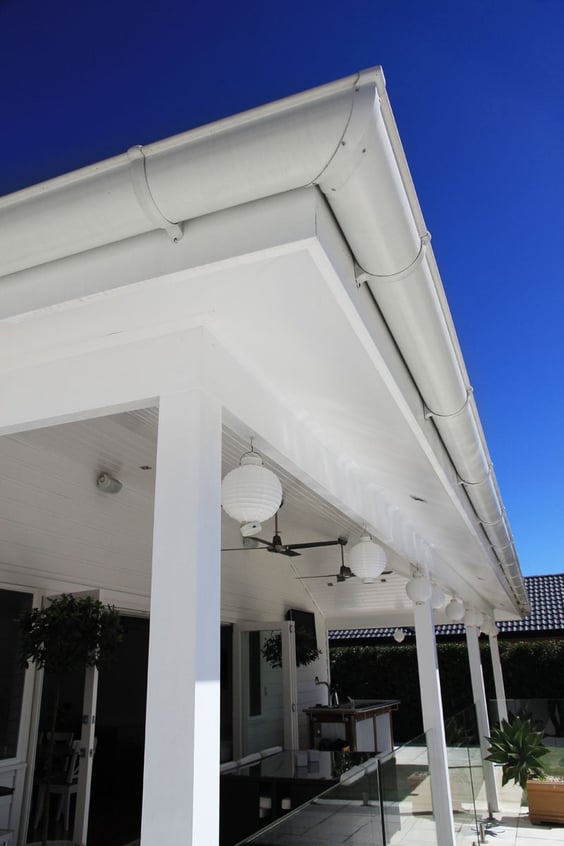

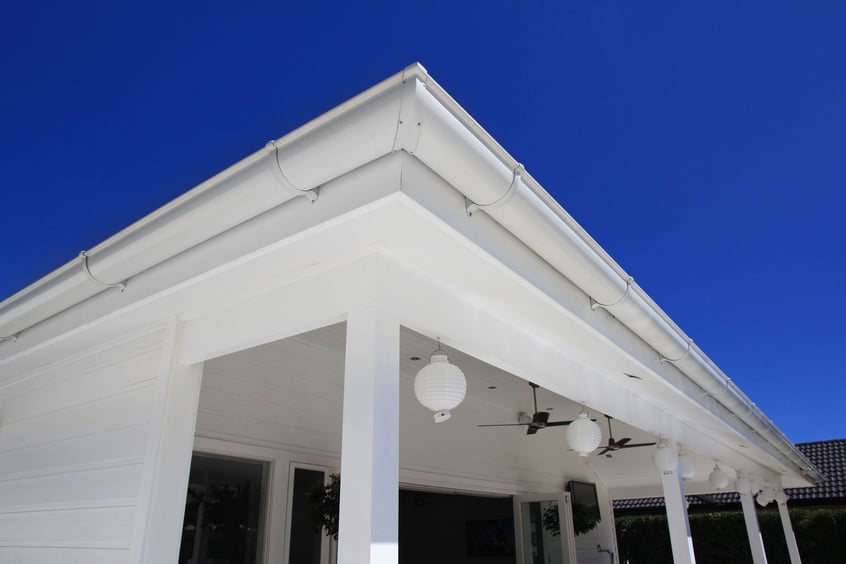

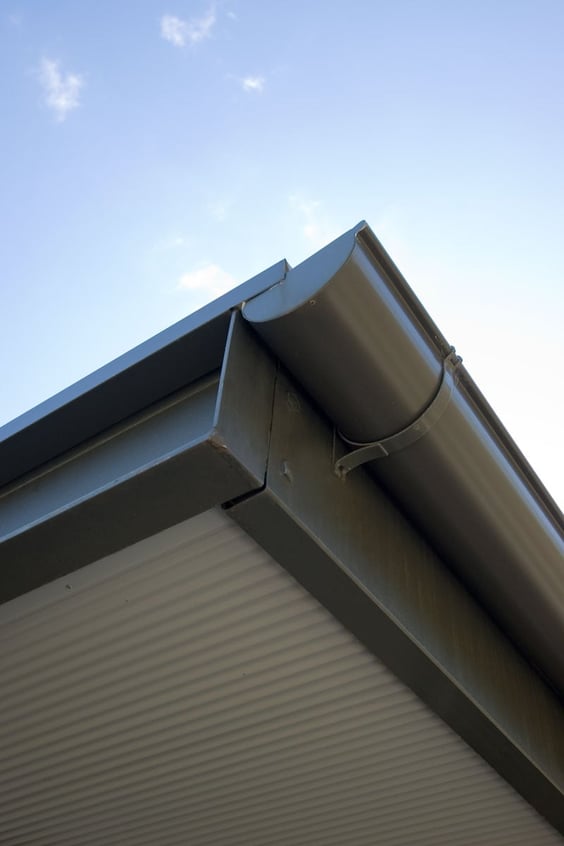

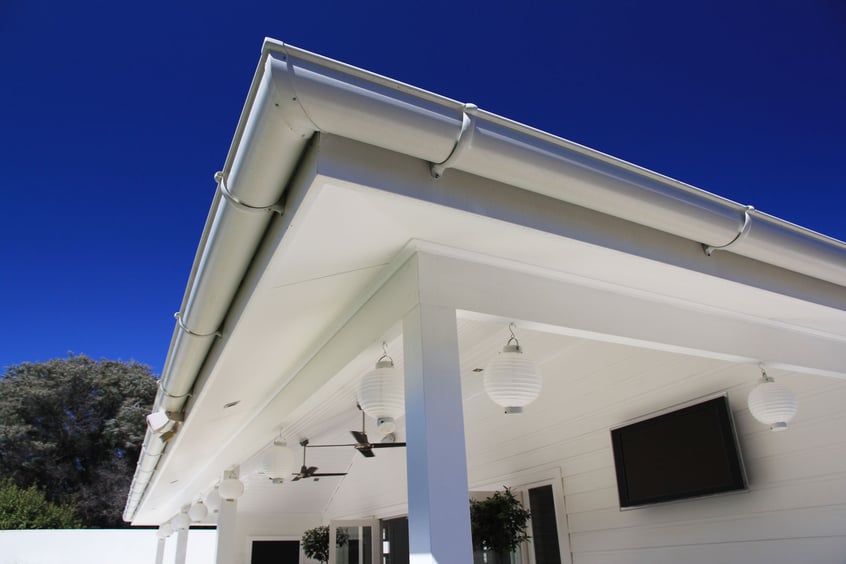

The appealing shape of Half Round Gutter is largely self cleaning. It has a good water carrying ability due to its wide 150mm diameter. Half Round is ideal for modern homes and is also popular on commercial buildings because of its practical shape. Manufactured in Christchurch.Image gallery
Stylish and Practical Guttering
Traditional curved forms of Stratco Half Round Gutter

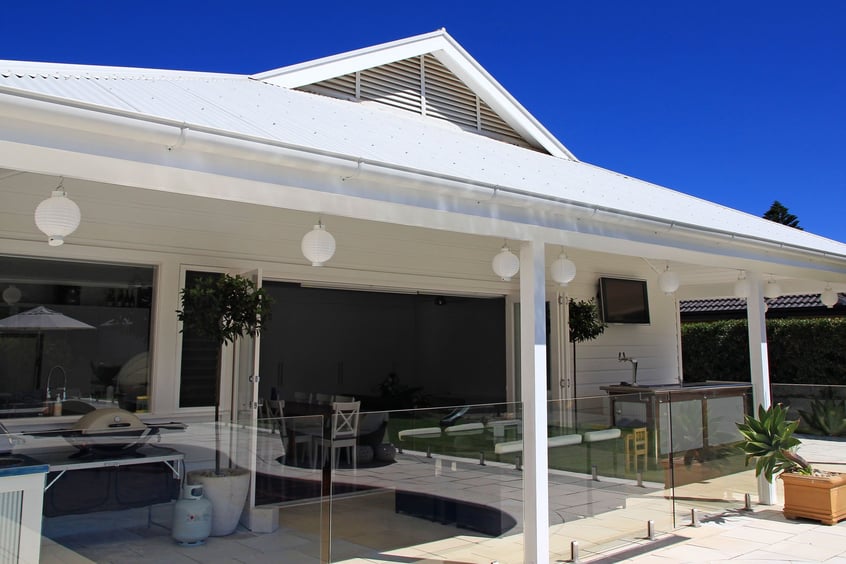

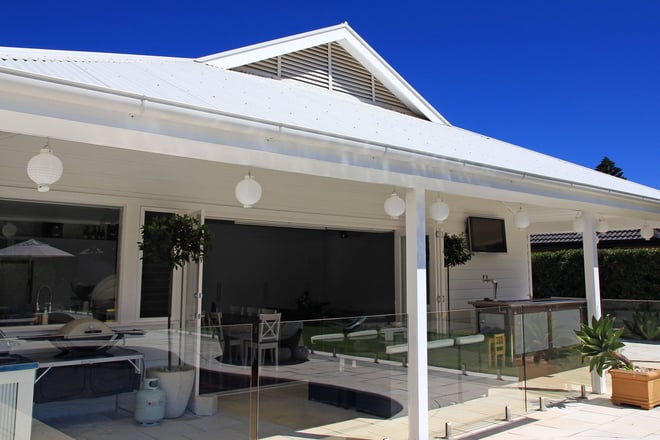

Stratco Half Round Gutter is the perfect complement to Spanish, and Tuscan styled homes. However, it has been used to great effect on both modern and traditional architecture.

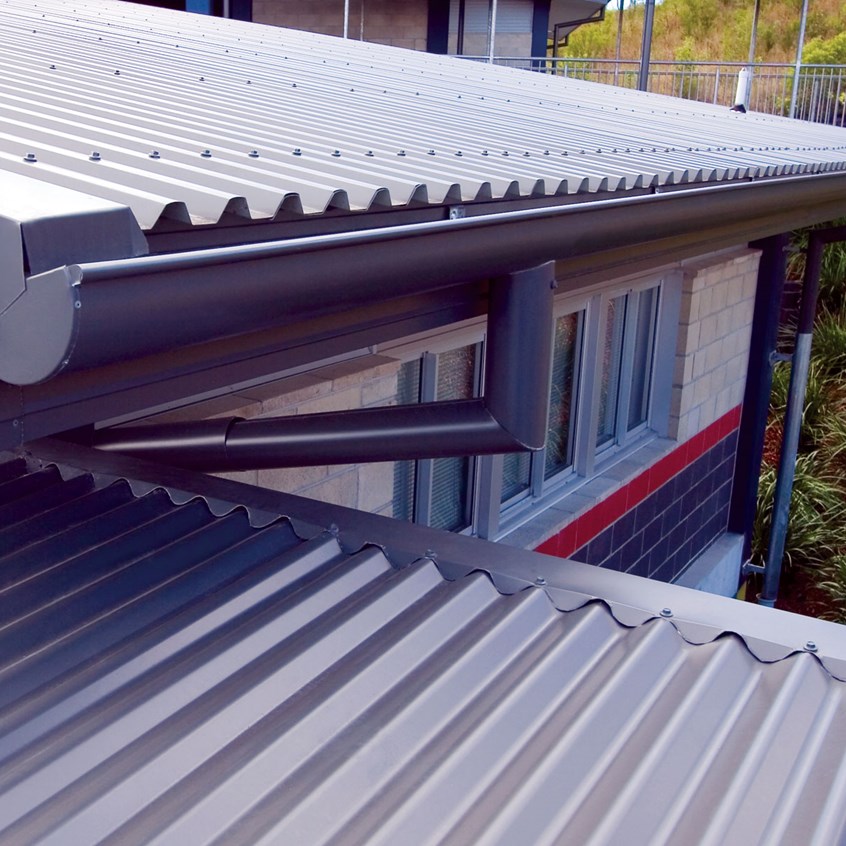

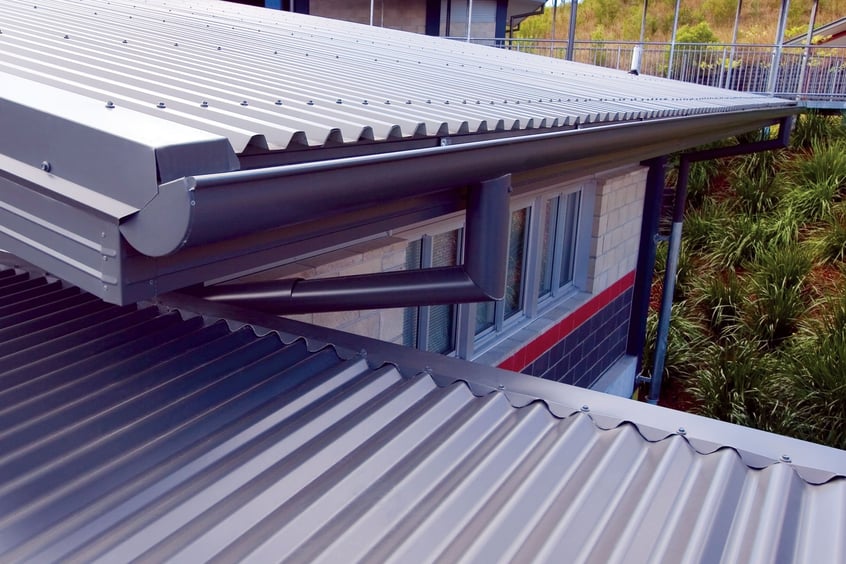

Its smooth, self-cleaning shape also lends its use to commercial and industrial buildings due to its practicality.
Available Colours:
Brochures & Installation Guides
Specifications
| Specifications | ||||
| Tensile (MPa) | BMT (mm) | Type | Capacity (mm²) | Total Cross Section Area (mm²) |
|---|---|---|---|---|
| G550 | 0.45 | Standard | 7703 | 9176 |
Note: Calculation of the effective cross sectional area 'Capacity' is based on the requirements of section 3.8 AS/NZS 2179.1:1994.
| Rainfall Intensity (ARI) mm/hr | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 |
| Catchment Area Per Downpipe (m2) | 172 | 143 | 123 | 108 | 96 | 86 | 78 | 72 | 66 | 61 | 57 | 54 | 51 | 48 | 45 | 43 |
Dimensions
| Dimensions (mm) | |
| A | 78 |
|---|---|
| B | 148 |
| C | 104 |
Gutter Accessories
Stop End
Individual stop ends can be supplied in left and right hand ready for on site installation.
Cast External Bracket
Brackets for gutters should be located close to all stop-ends, at both ends of sumps and rain-heads at a maximum of 750mm spacing for gutters less than 180mm wide, and at 600mm for gutters 180 – 300mm wide.
In snow load areas, spouting may be fitted with snow straps and brackets at a maximum of 600mm centres to withstand the additional potential weight of any snow build-up.
Note: Availability is location specific, please check prior to ordering.
