Round Downpipe
StratcoSKU: Round-Downpipe

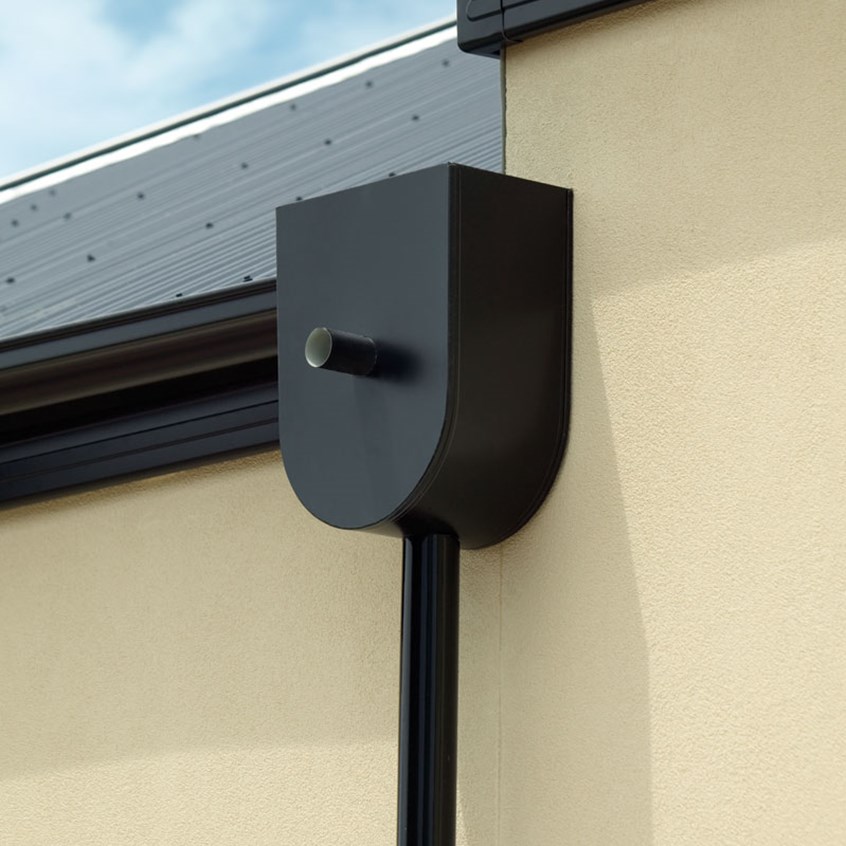

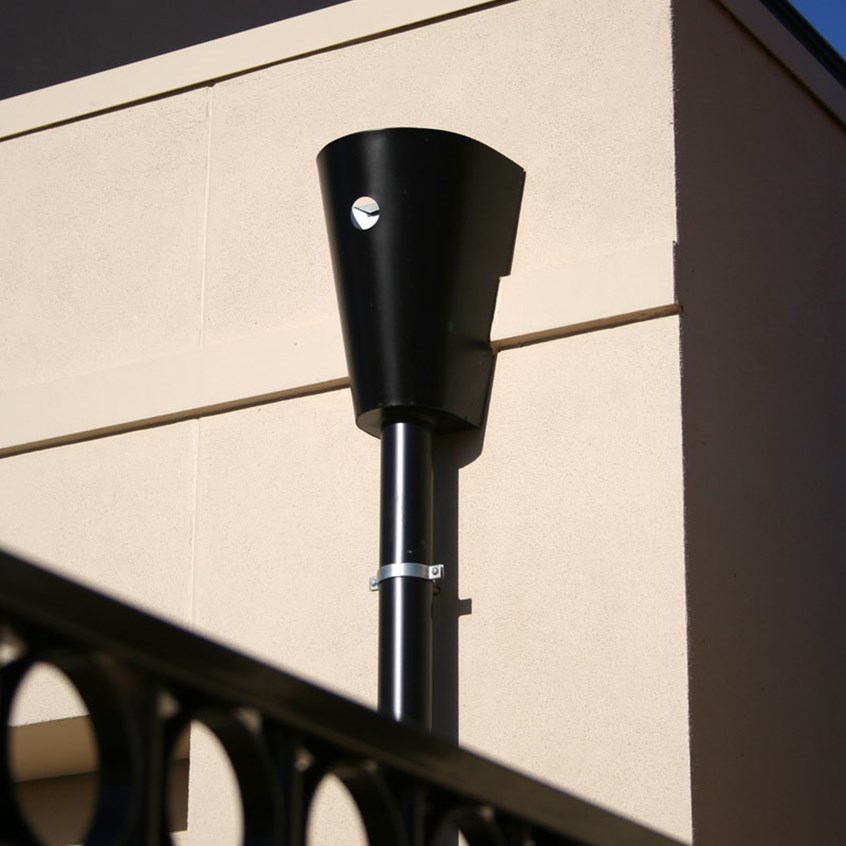

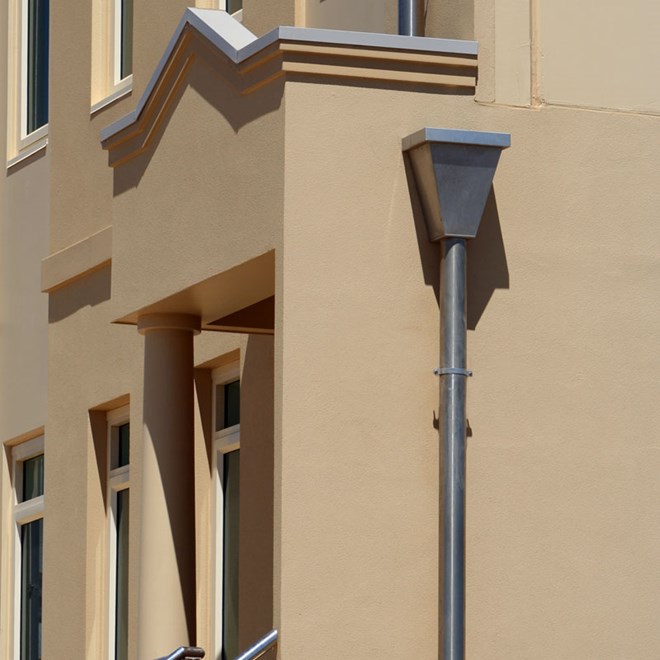

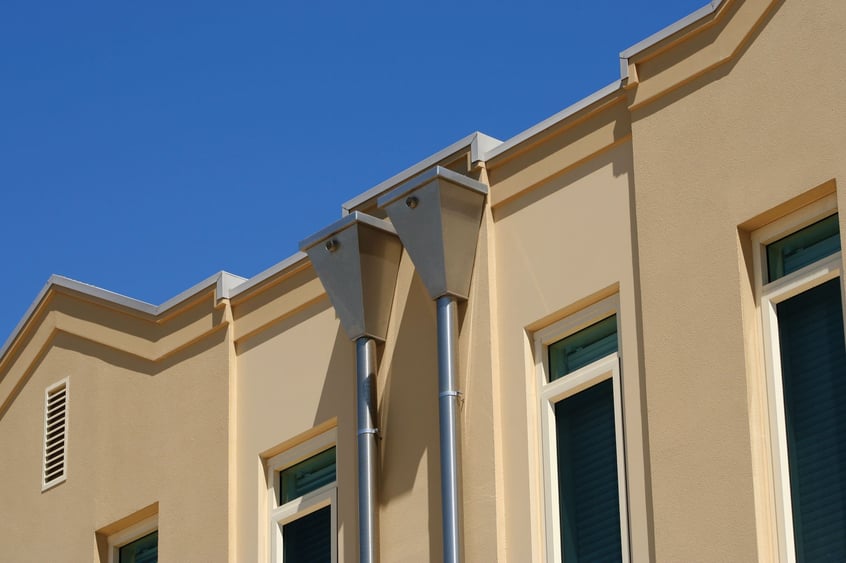

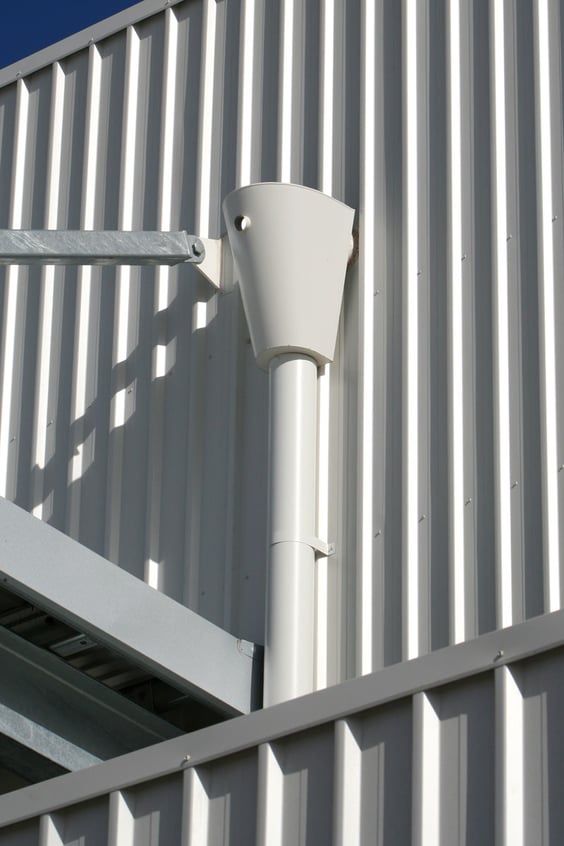

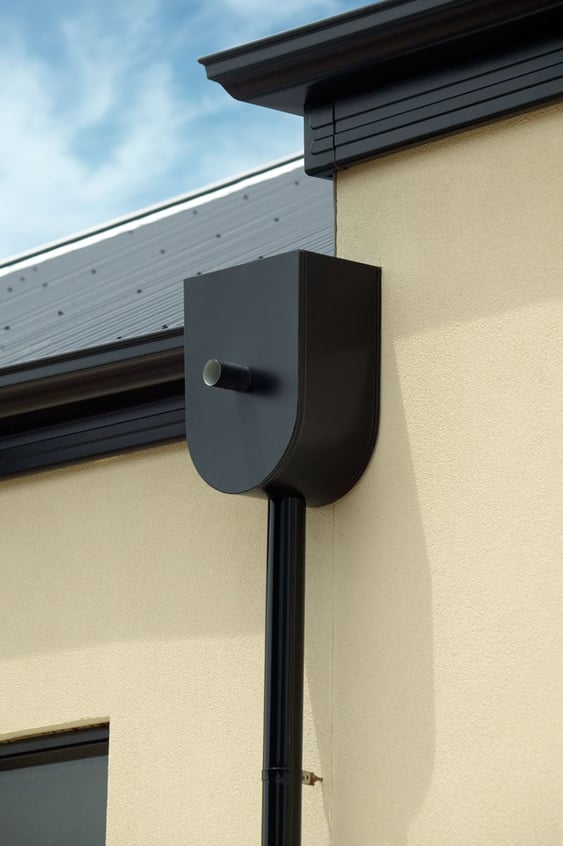

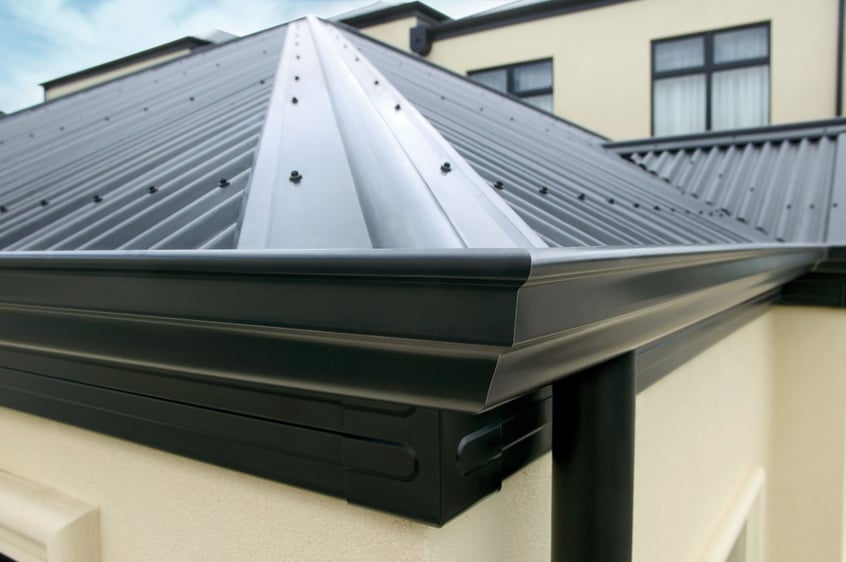

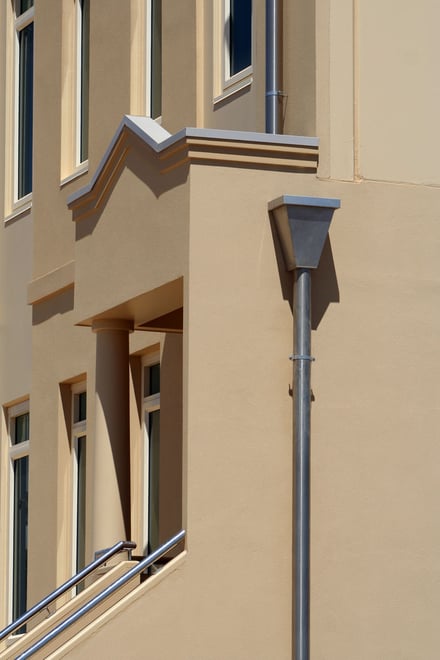

The classic Stratco Round Downpipe is available in a diameter to suit any application from industrial to residential buildings. Spouting lengths of 3200mm are available in a huge range of roofing colours. Manufactured in Christchurch.Image gallery

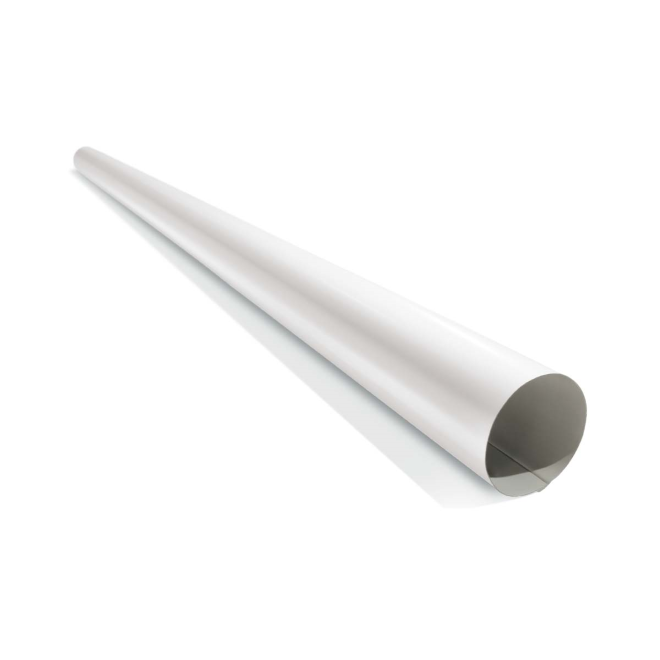

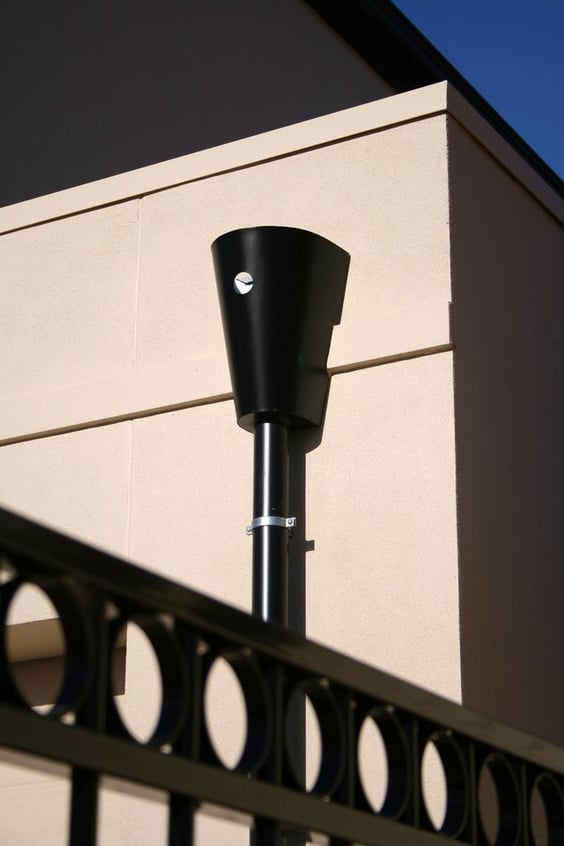

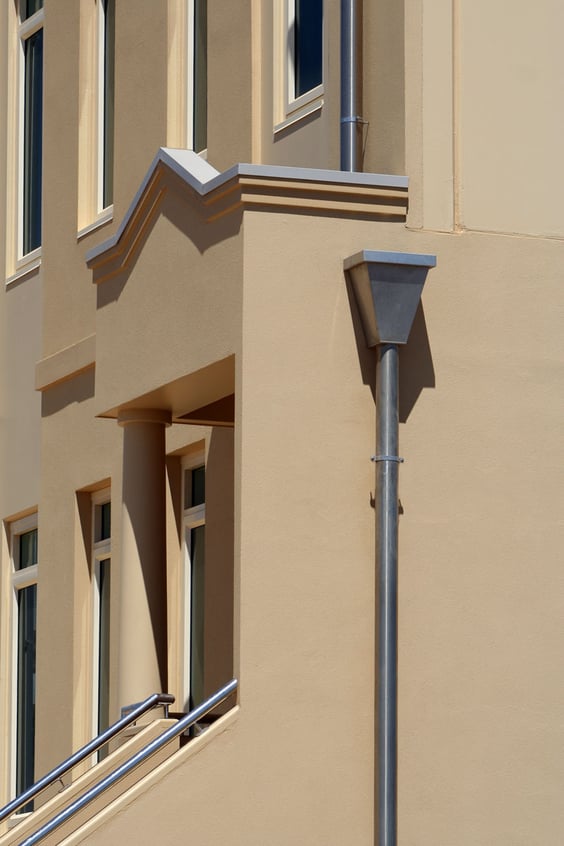

Classic Round Downpipe
Downpipe styling designed to adapt to any architecture
Round downpipes have a timeless shape that compliments both modern and traditional architecture. The round profile is largely self cleaning and is available in a huge range of diameters. Complete your project with an extensive range of Stratco Round Downpipe accessories.
Available Colours:
Brochures & Installation Guides
Technical Details
As a general guide, for every 1m2 , 80mm2 of downpipe is required. This calculation is based on the assumption that the maximum rainfall does not exceed 125mm per hour.
It is considered the best practice to drain to different points, using smaller downpipes rather than to one large outlet. Where possible, downpipes should be spaced at not more than 12000mm centres.
Material Specification
BMT - 0.55mm
Tensile - G300 MPa
| Downpipe Sizes | |
| Size (mm) | Roof Area Drained (m²) |
|---|---|
| 65 | 45 |
| 80 | 70 |
3200mm lengths
